PDA-ITD-8/ 800KG DC SLIDING GATE MOTOR
Product Features
- 1. With the most advanced industrial idea for the product appearance and using the latest mold technology to make it elegant, high-end, and full of texture.
- 2. The base is made of high-strength aluminum alloy die- casting, with good sealing performance, anti-corrosion, and rust prevention
- 3. Compact and fine, with high power and high starting torque.
- 4. Unique circuit design with wide voltage adaptation range.
- 5. With overheating protection function to ensure that the motor will not overheat and bum out.
- 6. Unique clutch design, double protection, safety and anti-

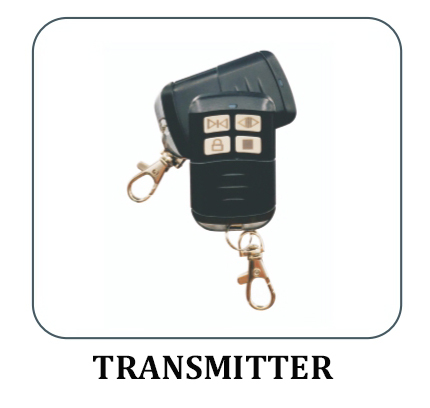

theft… - 7. High sensitive remote control, long range, safe and reliable.
ITALIAN FEATURES INCLUDING
DIAGRAM
TECHNICAL FEATURES
ITALIAN FEATURES INCLUDING
• Spring Limit Switch Operation
• Inside Copper Winding

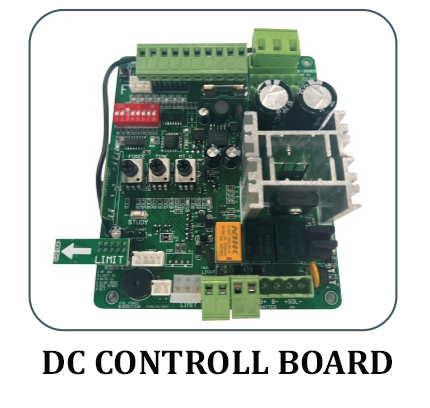

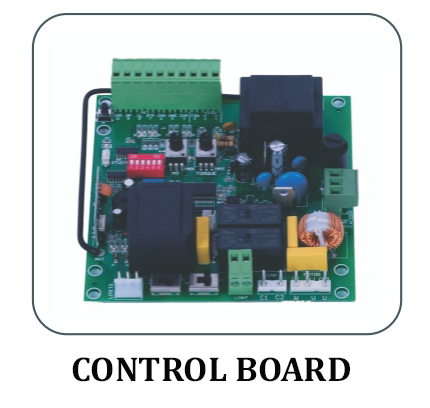

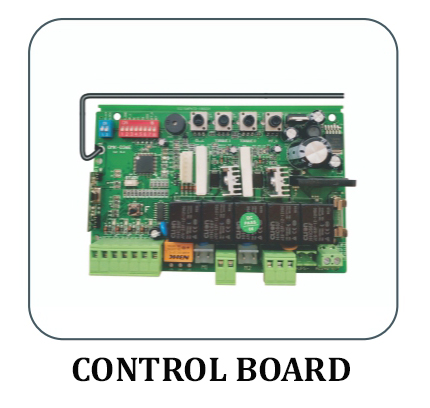

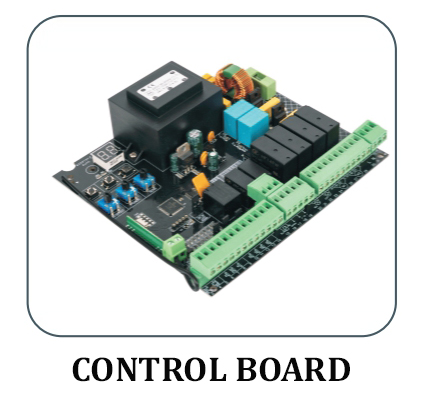

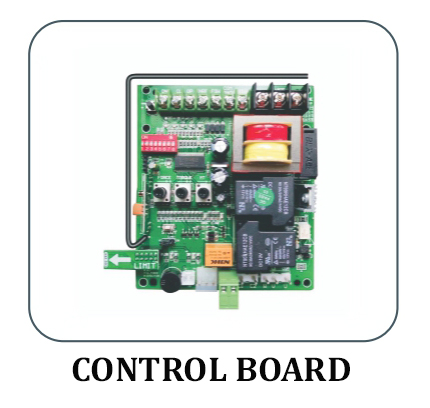

• Control Board With Normal Closed
• Inside Gear With Metal (Alloy Worm)
DIAGRAM
TECHNICAL FEATURES
TECHNICAL FEATURES | PDA-ITD-8/800KG DC |
POWER SUPPLY | 24V DC |
MOTOR POWER | 200W |
SPEED | 13m/min |
MAX.WEIGHT | 800KG |
OUTPUT TORQUE | 22NM |

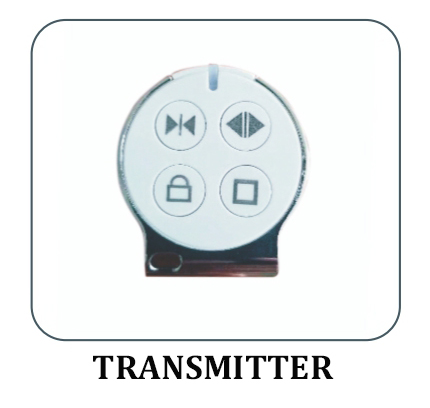

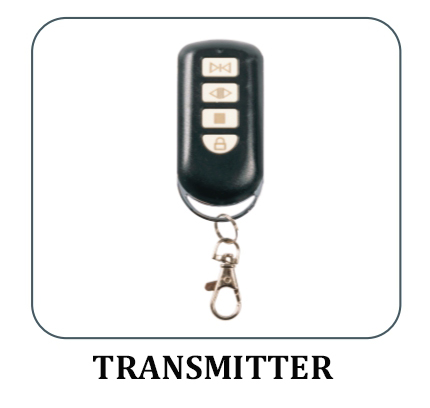

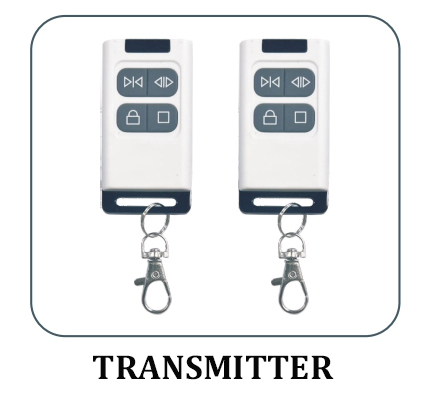

TRANSMITTER DISTANCE | 30M |
LIMIT SWITCH | SPRING LIMIT |
MAX.RECORDING OF TRANSMITTER | 200NOS. |
WORKING CYCYLE | 90% |
WORKING TEMPERATURE | Tem-45/+65 |
PROTECTION IN CLASS | IP44 |
