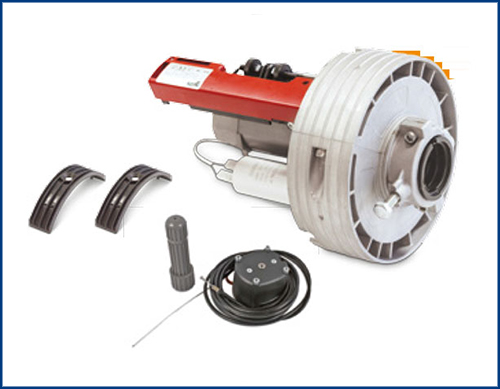

TONDO – OPERATOR FOR SHUTTERS
- NEW DESIGN
- QUICK INSTALLATION EVEN ON EXISTING SHUTTERS
- RREVERSIBLE
- MANUAL RELEASE
- ELECTROBRAKE
- MECHANICAL LIMIT SWITCH BUILT-IN, EASY ADJUSTABLE
- FAST, RELIABLE AND SILENT
- POWER SUPPLY 230 V
DIAGRAM
TECHNICAL FEATURES
DIAGRAM
TECHNICAL FEATURES
| TONDO 140 | TONDO 180 | |
| POWER SUPPLY | 230 VAC | 230 VAC |
| LIFTING FORCE | 140 KG | 180 KG |
| CONDENSER | 18 UF | 22 UF |
| AVERAGE ABSORPTION | 2,5A | 2,5A |
| ABSORBED POWER | 520 W | 700 W |
| RPM RING | 9 / MIN | 9 / MIN |
| OPERATOR WEIGHT | 8 KG | 10 KG |
| ENVIRONMENTAL CONDITIONS | -20/+85° C | -20/+85° C |
| LIMIT SWITCH | 6 MT | 6 MT |
