SPEED – SLIDING DOORS AUTOMATIONS
Features
- REVERSIBLE 1 MOTOR AUTOMATION FOR SLIDING DOORS
- SUITABLE FOR OFFICES, SUPERMARKETS AND SHOPS
- RAPID AND SILENT MOVEMENTS
- EASY AND RAPID INSTALLATION
DIAGRAM
TECHNICAL FEATURES
DIAGRAM
TECHNICAL FEATURES
COVERALL 1 LEAF WITH MAXIMUM WEIGHT OF 120 KG
| COD. | LUNGHEZZA TRAVERSA (MM) | LARGHEZZA PASSAGGIO (MM) | LUNGHEZZA ANTA (MM) |
| COVERALL LENGHT ( MM) | NET PASSAGE WIDTH (MM) | LEAF LENGHT (MM) | |
| 602/1370 | 1370 | 600 | 700 |
| 602/1570 | 1570 | 700 | 800 |
| 602/1770 | 1770 | 800 | 900 |
| 602/1970 | 1970 | 900 | 1000 |
| 602/2370 | 2370 | 1100 | 1200 |
| 602/2770 | 2770 | 1300 | 1400 |
| 602/3170 | 3170 | 1500 | 1600 |
| 602/3570 | 3570 | 1700 | 1800 |
| 602/3970 | 3970 | 1900 | 2000 |
| 602/4370 | 4370 | 2100 | 2200 |
| 602/4770 | 4770 | 2300 | 2400; |
| 602/5170 | 5170 | 2500 | 2600 |
| 602/5570 | 5570 | 2700 | 2800 |
| 602/5970 | 5970 | 2900 | 3000 |

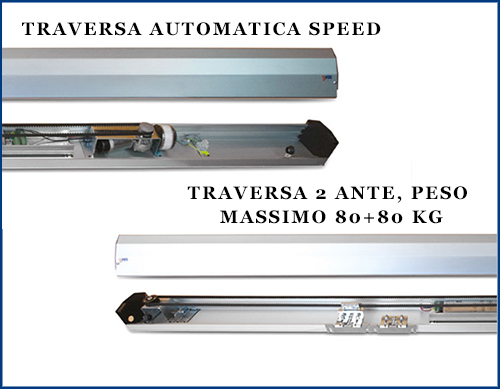

COVERALL 2 LEAVES WITH MAXIMUM WEIGHT OF 80 + 80 KG
| COD. | LUNGHEZZA TRAVERSA (MM) | LARGHEZZA PASSAGGIO (MM)) | LUNGHEZZA ANTA (MM) |
| COVERALL LENGHT ( MM) | NET PASSAGE WIDTH (MM) | LEAF LENGHT (MM) | |
| 603/1720 | 1720 | 800 | 2 X 450 |
| 603/1920 | 1920 | 900 | 2 X 500 |
| 603/2320 | 2320 | 1100 | 2 X 600 |
| 603/2720 | 2600 | 1300 | 2 X 700 |
| 603/3120 | 3120 | 1500 | 2 X 800 |
| 603/3520 | 3520 | 1700 | 2 X 900 |
| 603/3920 | 3920 | 1900 | 2 X 1000 |
| 603/4320 | 4320 | 2100 | 2 X 1100 |
| 603/4720 | 4720 | 2300 | 2 X 1200 |
| 603/5120 | 5120 | 2500 | 2 X 1300 |
| 603/5520 | 5520 | 2700 | 2 X 1400 |
| 603/5920 | 5920 | 2900 | 2 X 1500 |
